The mold design process begins with analyzing the product geometry and material requirements.
Key factors such as parting line, draft angles, gating, and cooling are carefully planned.

Mold Design and Process

Request Quote

Built Before It’s Formed

MOLD DESIGN

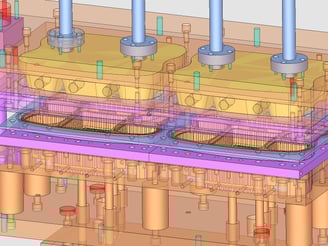

The process of designing the just right package to meet your needs begins in our Product Development Department, where our Design Team works with the latest technology to transform your package vision into reality. Our design teams work with the latest SolidWorks CAD/CAM software to transform your package vision into reality. The 3-D Drawings are a critical collaboration tool that let us gestate, communicate, and convert your ideas into innovative package designs. Our virtual design process offers shorter lead times due to concurrently developed package designs.

Designing the Perfect Form

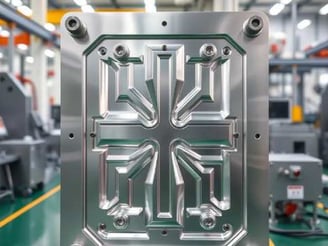

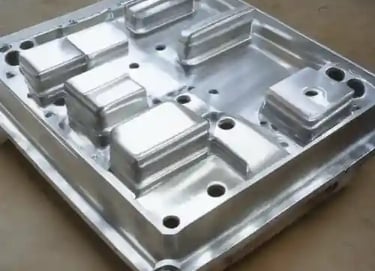

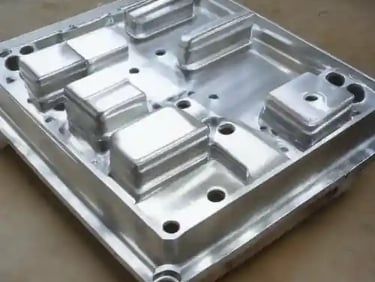

The process involves several steps, including designing, casting, machining, and finishing the mold, which requires precise and careful attention to detail. CNC machining involves the use of computer-controlled machines to precisely cut and shape the aluminum. This method highly accurate and produces molds with very tight tolerances.

With the experience, credentials, and state-of-the-art machinery, Custom Mold & Design can create intricate, highly customized molds and tooling for high- compliance sectors. Our committed team of engineers, technicians, and solution architects is prepared to take on your most difficult projects, from collaborative pre-design to product delivery.
